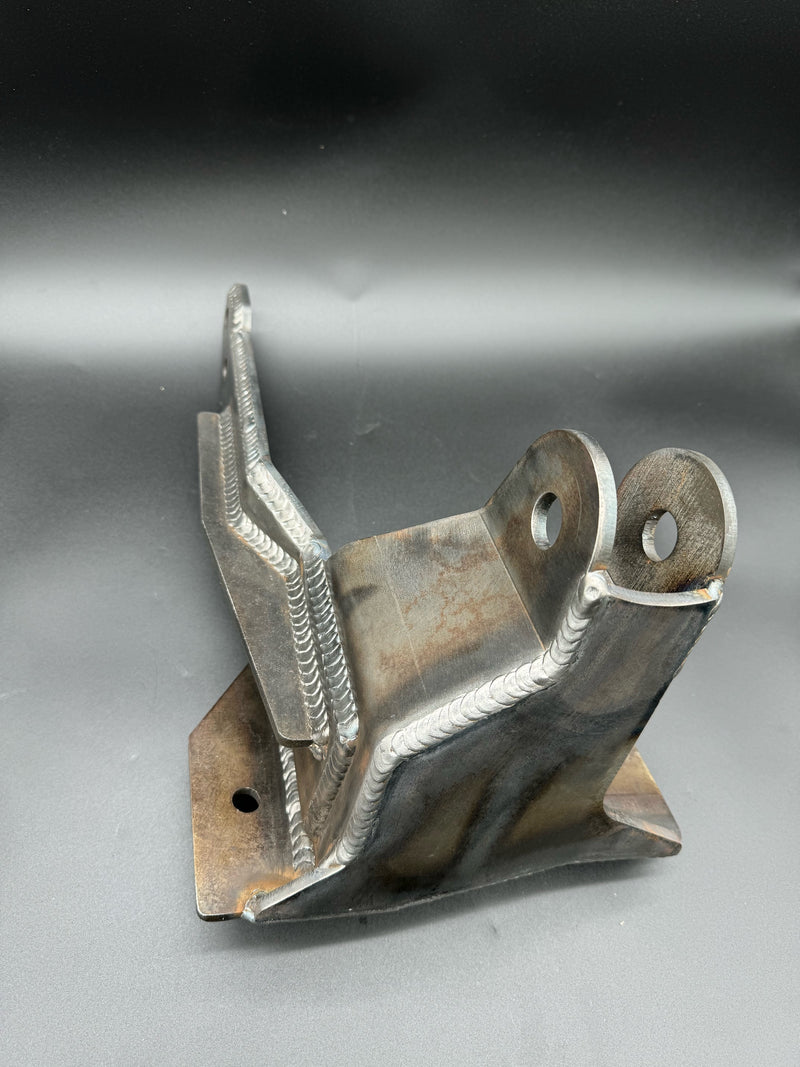

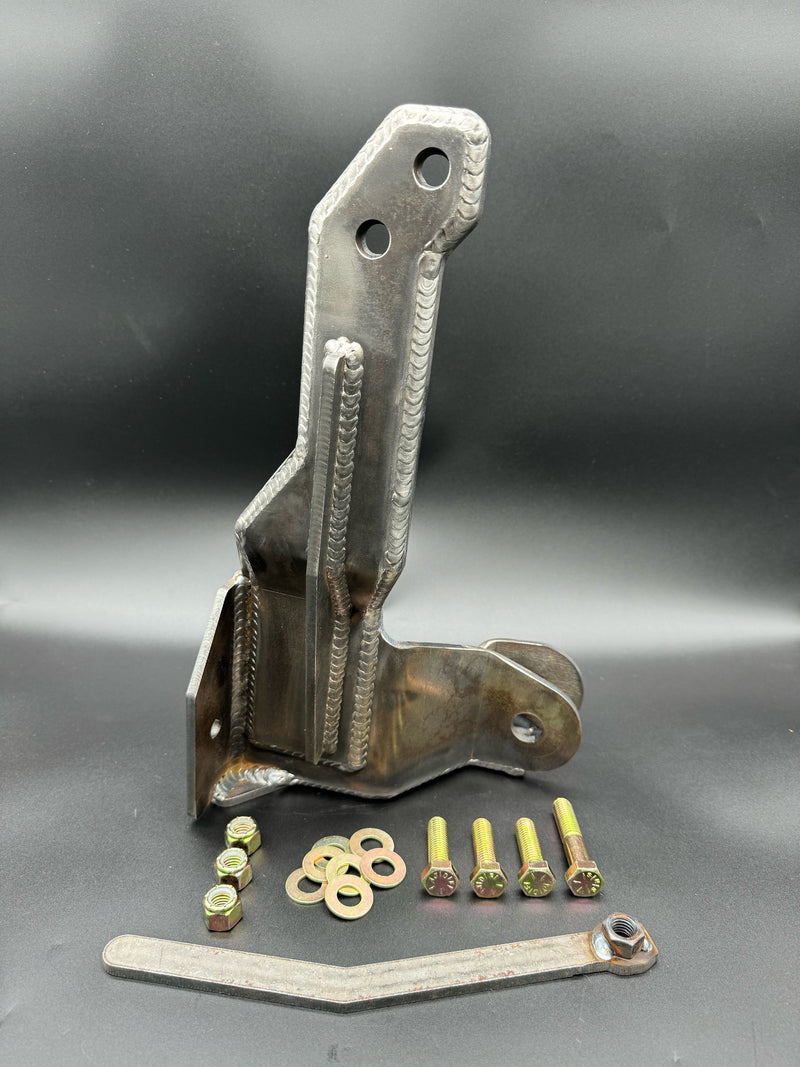

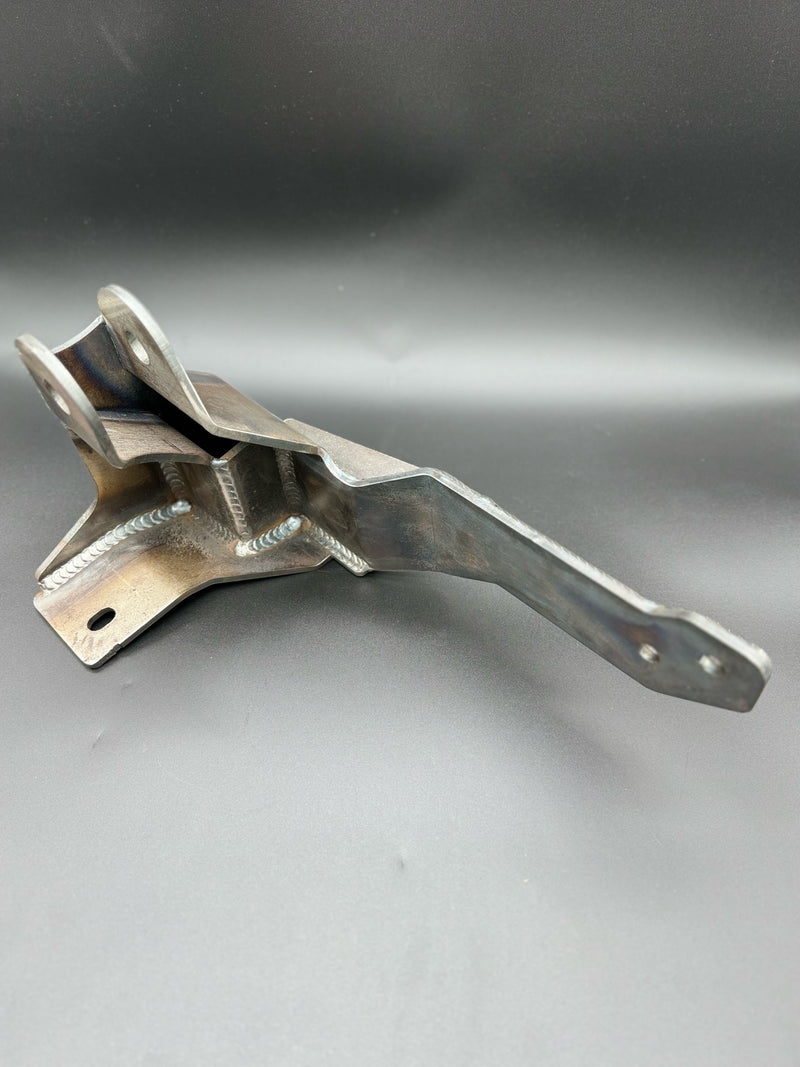

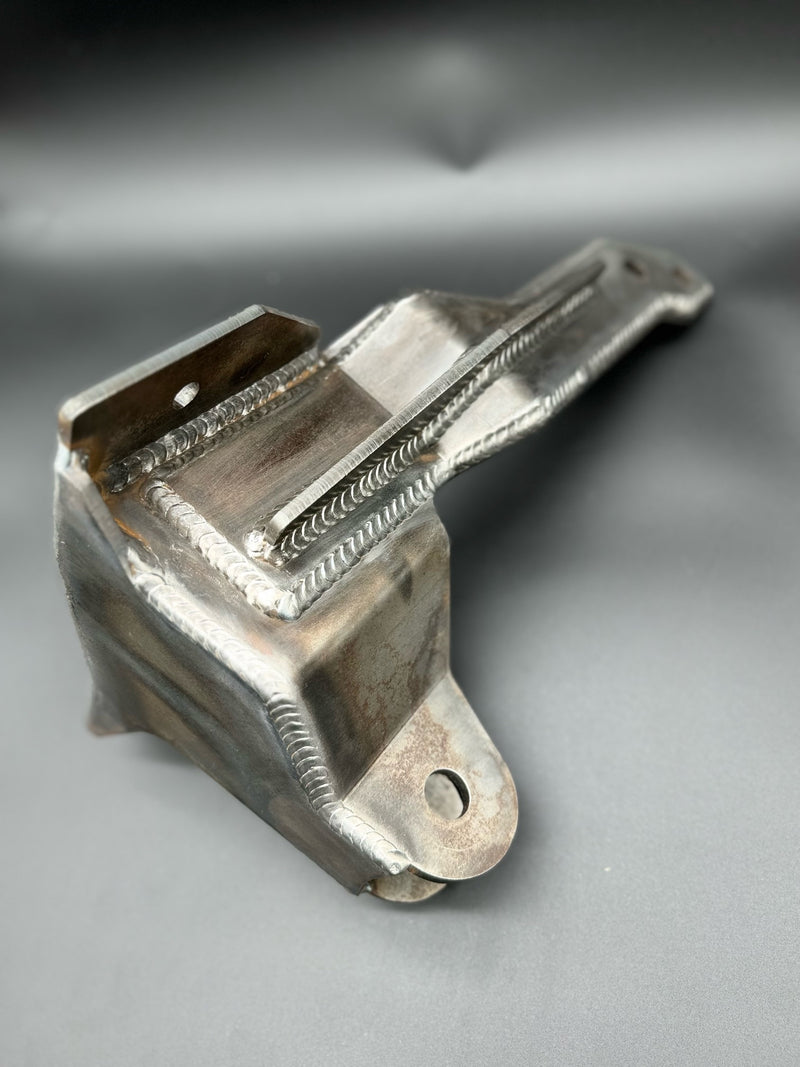

Ford OBS 0"-3" Trac Bar Bracket (05+ Superduty Swap)


This Trac Bar Bracket is designed to correct steering angles and center the front axle using the factory 05+ superduty trac bar and our 0"-3" Pitman Arm. It bolts into factory holes on the frame after you remove the two studs and requires two holes to be drilled in the engine crossmember.

This bracket will not work with lifted applications that require a drop pitman arm. This is to be used with the stock pitman arm with stock height springs or a levelling kit. If you want to go above that you must use our 4"-8" Lift Trac Bar Kit and 4"-8" Drop Pitman Arm.

For proper alignment you will need to use our coil buckets. If you want to use factory 05+ coil buckets you will need to buy our adjustable trac bar to get proper alignment.


  • CNC Cut and Bent
  • 1/4" Plate
  • Bolt In
  • Fits 92-97 F150,F250, and F350 Frames
  • For Use With Stock Coil Springs or Levelling Kit
  • Grade 8 Hardware Included
  • Bare Steel (No Coating)

Fitment Guide

  • Fits 1987-1997 F150 / F250 / F350
  • Fits 2WD and 4WD Frames


**May require minor trimming if using the Superduty Steering Box**



Download Instructions
